PRODUCT DESCRIPTION

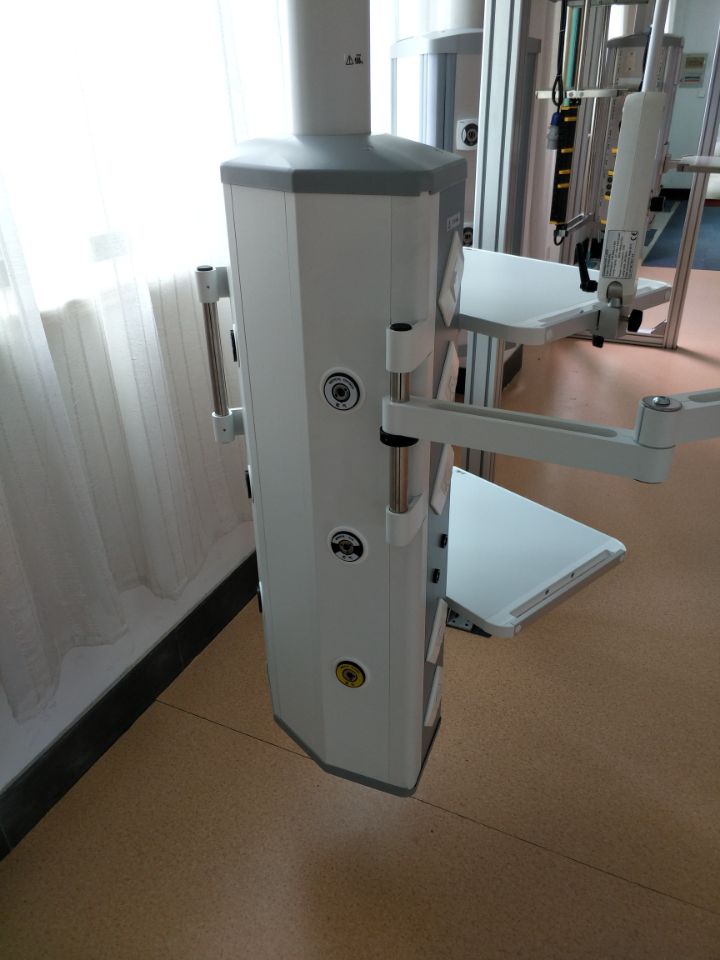

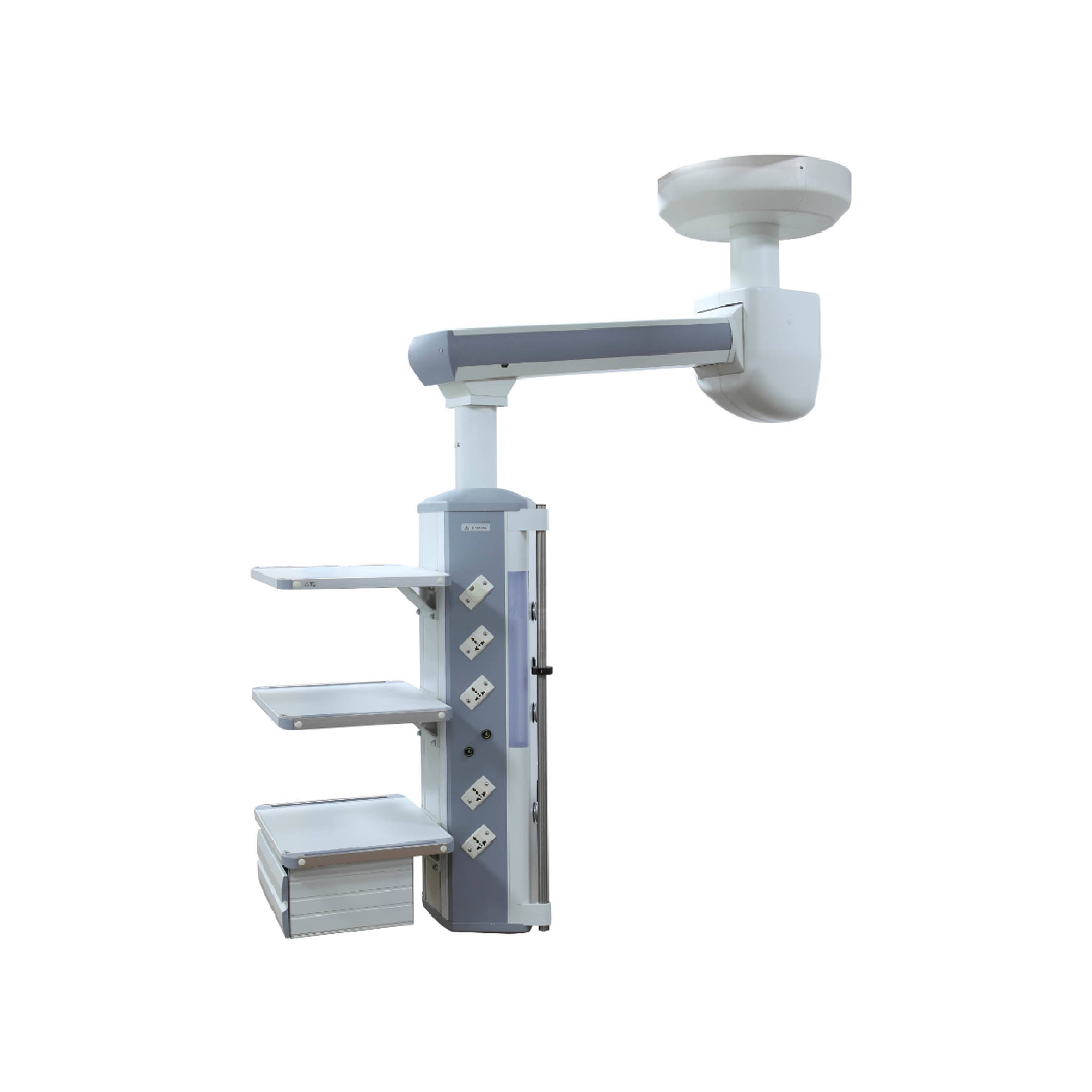

The medical pendant is designed to release the working space of the ward, keep the equipment clean and away
from the ground, so that the medical staff can operate various equipment more conveniently and help improve.
TECHNICAL PARAMETERS
| Max. load | 270kg |
| Medical gas outlets standards | optional British, German, French, Metric, Ohmeda, DISS, Chemetron, Purit-Bennett standards |
| Column length | 1,200mm |
| Arm rotation diameter | 900mm |
| Arm rotation angle | 340° |
| Braking system | Mechanical braking(optional air pneumatic or electromagnetic braking) |
STANDARD CONFIGURATION
| Gas outlet | O2*2, Air*2, Vac*1 |
| Electrical socket | 6 pcs |
| Equipotential earthing terminal port | 2 pcs |
| Network interface | 1 pcs |
| Phone interface | 1 pcs |
| Instrument shelves(height adjusted) | 3 pcs |
| Self priming drawer | 1 pcs |
| Basket | 1 pcs |
| I.V Pole(height adjustable) | 1 pcs |
OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE
