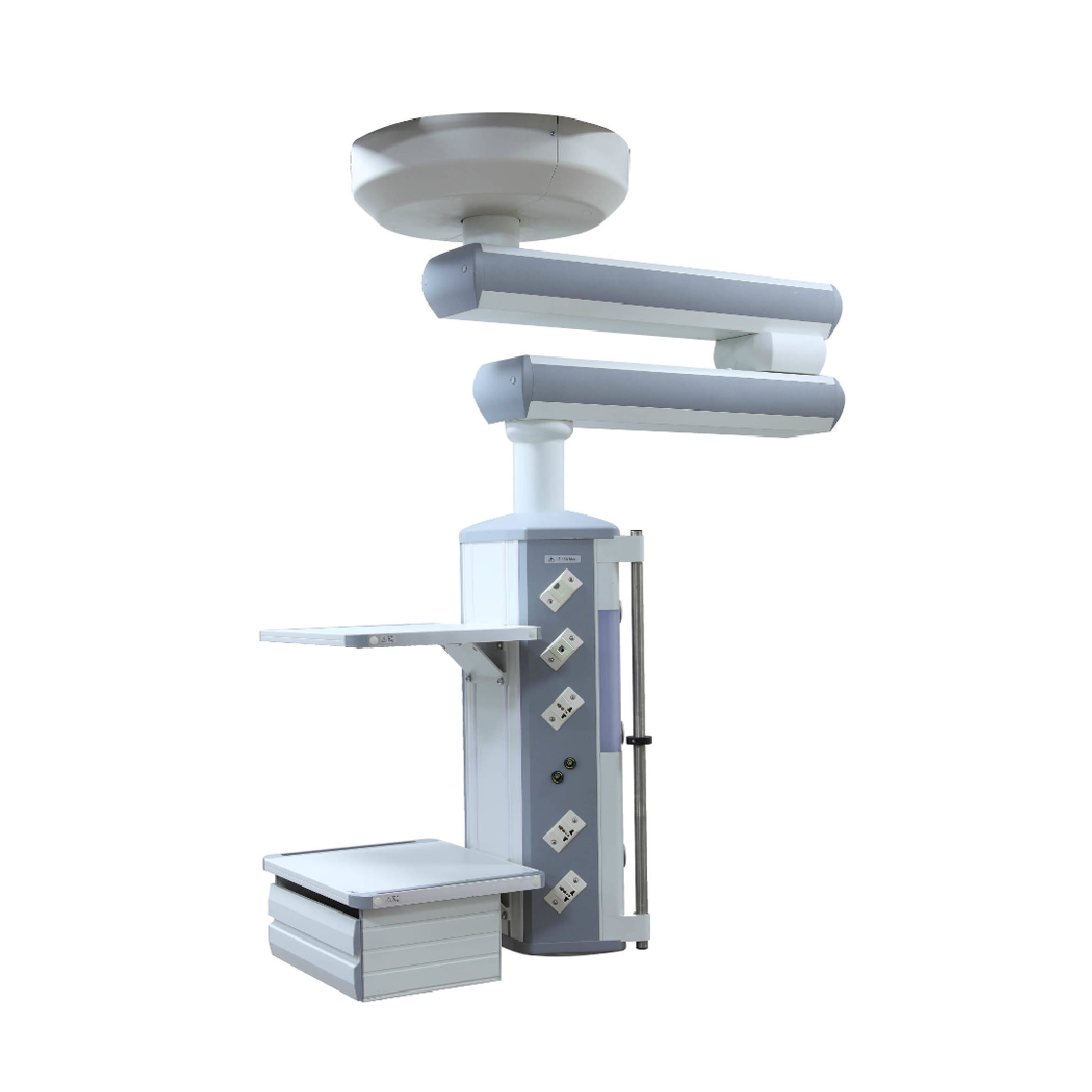

PRODUCT DESCRIPTION
1.Pendants applied area: operation theatre, ICU
2.Adopted by 340° ceiling suspending way, rotating angle 340°.
3.The pendant is adopted by the mechanical brakes.
4.The tray height is adjustable, and gas terminals are optional(GB, DIN, US, BS), with optional power sockets(GB
Class 3 general).
5.Function column height is customized(Height: 600~1,000mm).
6.Updated options: monitor bracket, display bracket, LED surgical examination lights, IV poles, straight plug or
hanging flowmeter.
7.Pendant cantilever: double arms 940+800mm(effective extended arm: 1,300mm)—Revise according to actual
dimension.
TECHNICAL PARAMETERS
| Max. load | 270kg |
| Gas terminal | O₂/VAC/AIR/N₂O/CO₂/N₂/AGSS(optional) |
| Power socket | 220V 50Hz 10A |
| Equipotential ground | equivalent potential port*2 |
| Intercom interface | RJ45(6 types) |
| Instrument platform | instrument platform 2 layers |
STANDARD CONFIGURATION
| Gas outlet | O2*2, Air*2, Vac*1 |
| Electrical socket | 6 pcs |
| Equipotential earthing terminal port | 2 pcs |
| Network interface | 1 pcs |
| Phone interface | 1 pcs |
| Instrument shelves(height adjusted) | 2 pcs |
| Self priming drawer | 1 pcs |
| Basket | 1 pcs |
| IV Pole(height adjustable) | 1 pcs |
OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE
| Instrument bracket |
| Gas terminal |
| Basket |
| Network interface |
| Intercom |
| Power sockets |
