PRODUCT DESCRIPTION

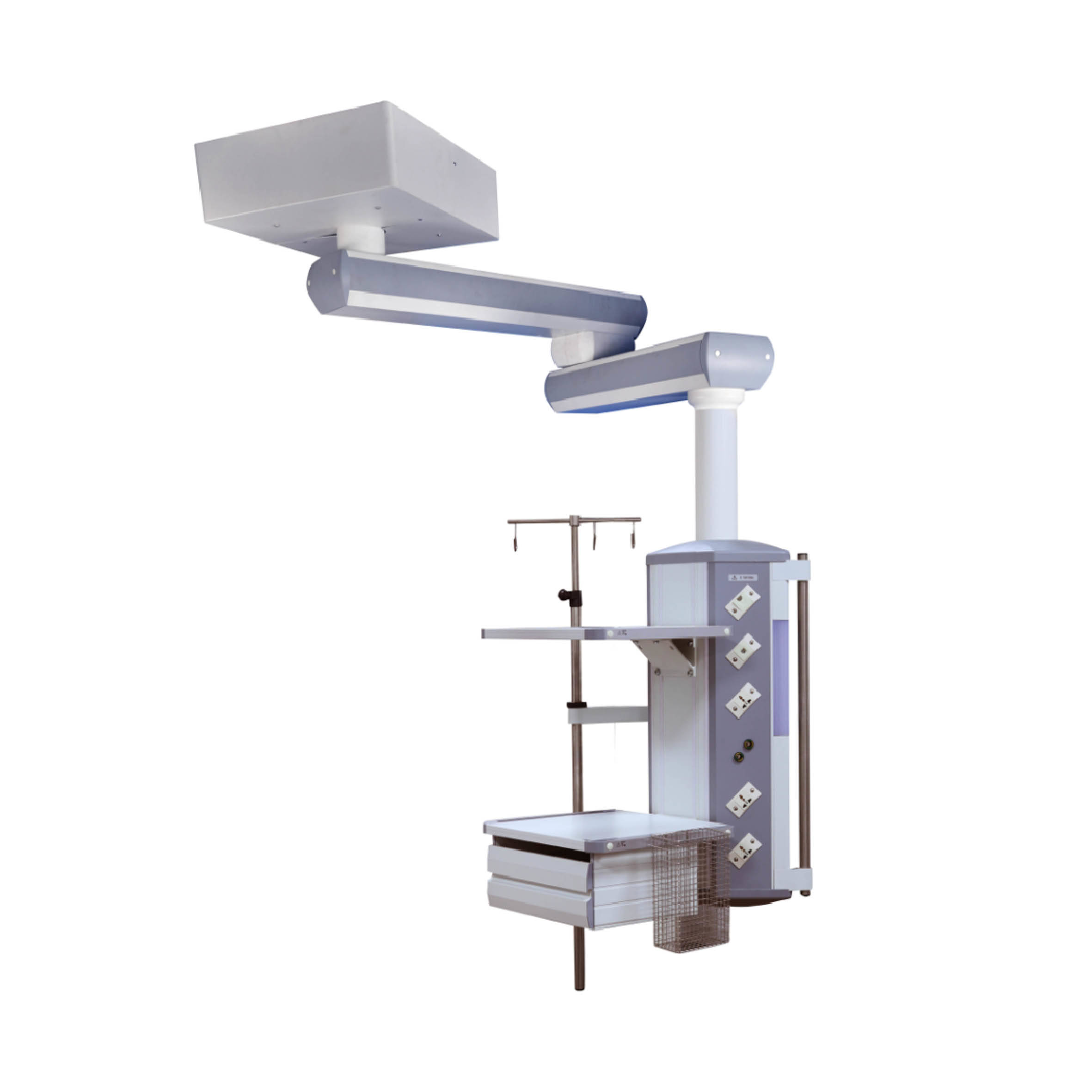

1.Adopted by 340° ceiling suspending way, rotating angle 340°.

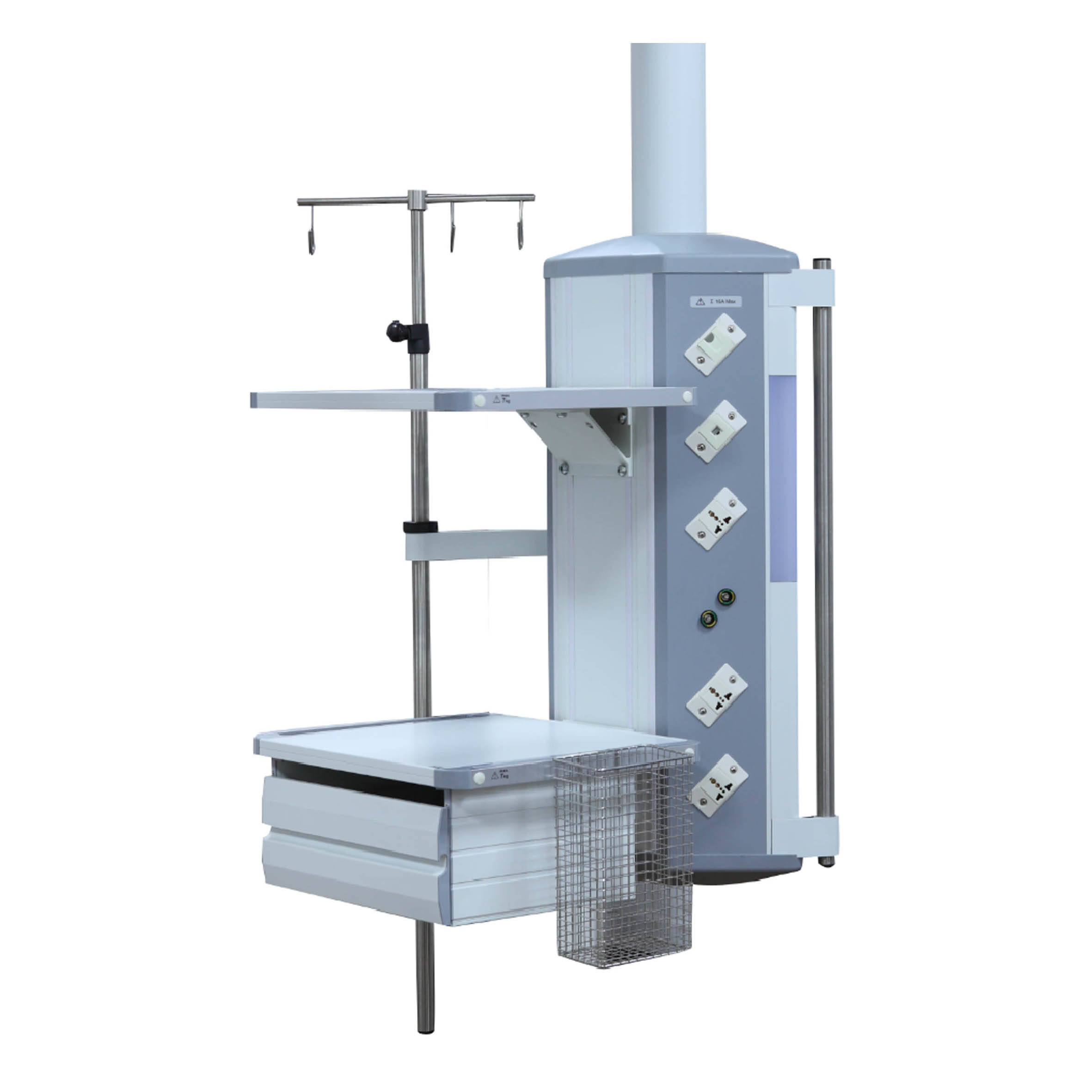

2.The tray height is adjustable, and gas terminals are optional(GB, DIN, US, BS), with optional power sockets(GB Class 3 general).
3.Function column height is customized.
TECHNICAL PARAMETERS
| Max. load | 270kg |
| Gas terminal | O₂/VAC/AIR/N₂O/CO₂/N₂/AGSS(optional) |
| Power socket | 220V 50Hz 10A |
| Equipotential ground | equivalent potential port*2 |
| Intercom interface | RJ45(6 types) |
| Instrument platform | 2 players |
| Arm rotation diameter | 940+800mm |
| Arm rotation angle | 340° |
| Braking system | Mechanical braking(optional air pneumatic or electromagnetic braking) |
STANDARD CONFIGURATION
| Gas outlet | O2*2, Air*2, Vac*1 |
| Electrical socket | 6 pcs |
| Equipotential earthing terminal port | 2 pcs |
| Network interface | 1 pcs |
| Phone interface | 1 pcs |
| Instrument shelves(height adjusted) | 2 pcs |
| Self priming drawer | 1 pcs |
| Basket | 1 pcs |
| I.V Pole(height adjustable) | 1 pcs
|
