Technical Parameters and Configuration

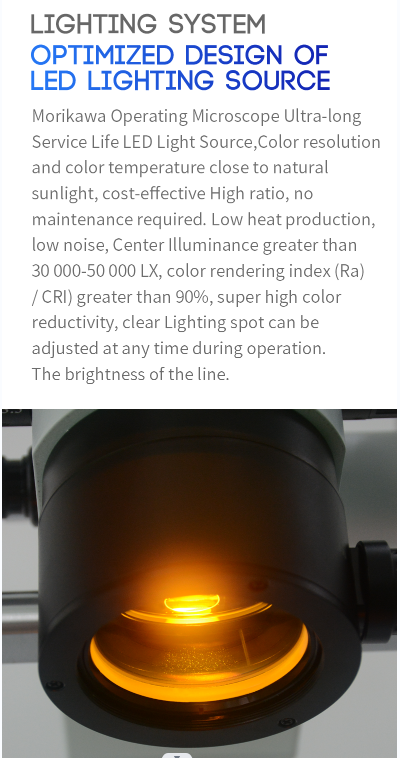

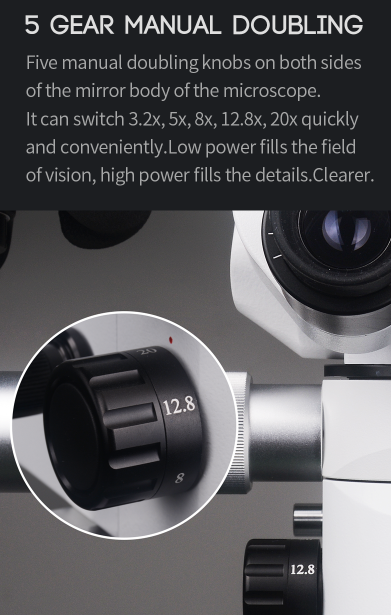

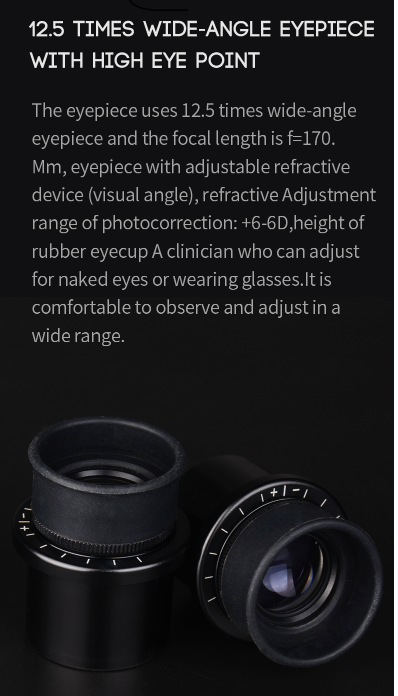

optical System Apochromatic optical system5-speed zoom host zoom System Five-level magnification:3.2x.5x.8x.12.8x.20x12.5x wide-angle eyepiece Magnitic adsorption Eyepiece Lens insertion Diopter correction adjustment range:+6~-6D Adjustable height eye cup, suitable foroperators with glasses. 0-180 tilt angle adjustable binocular tube, Binocular Tube f=170mm interpupillary distance adjustmentrange:5 5mm-75mm Large zoom objective lens, working objective Lens distance:200-30omm 0-15mm fine-turning large objective lens f=250mm lumination LED bulb, adjustable brightness, center system illumination is more than 30000-50000lux,display index>90% Handle Standard bilateral handle,360°adjustable Digital imaging Optical splitterDigital camera tube SLR digital camera Wireless camera system HD display HD data cable (built-in) Bracket system Luxury display stand High quality imported mute medical mobilebase casters, four wheels can be lockedLuxury floor stand lntegrated design, built-in cable Base size: 800 x800mm packing size：945x775x650 pack weight：126kg
|
