PRODUCT DESCRIPTION

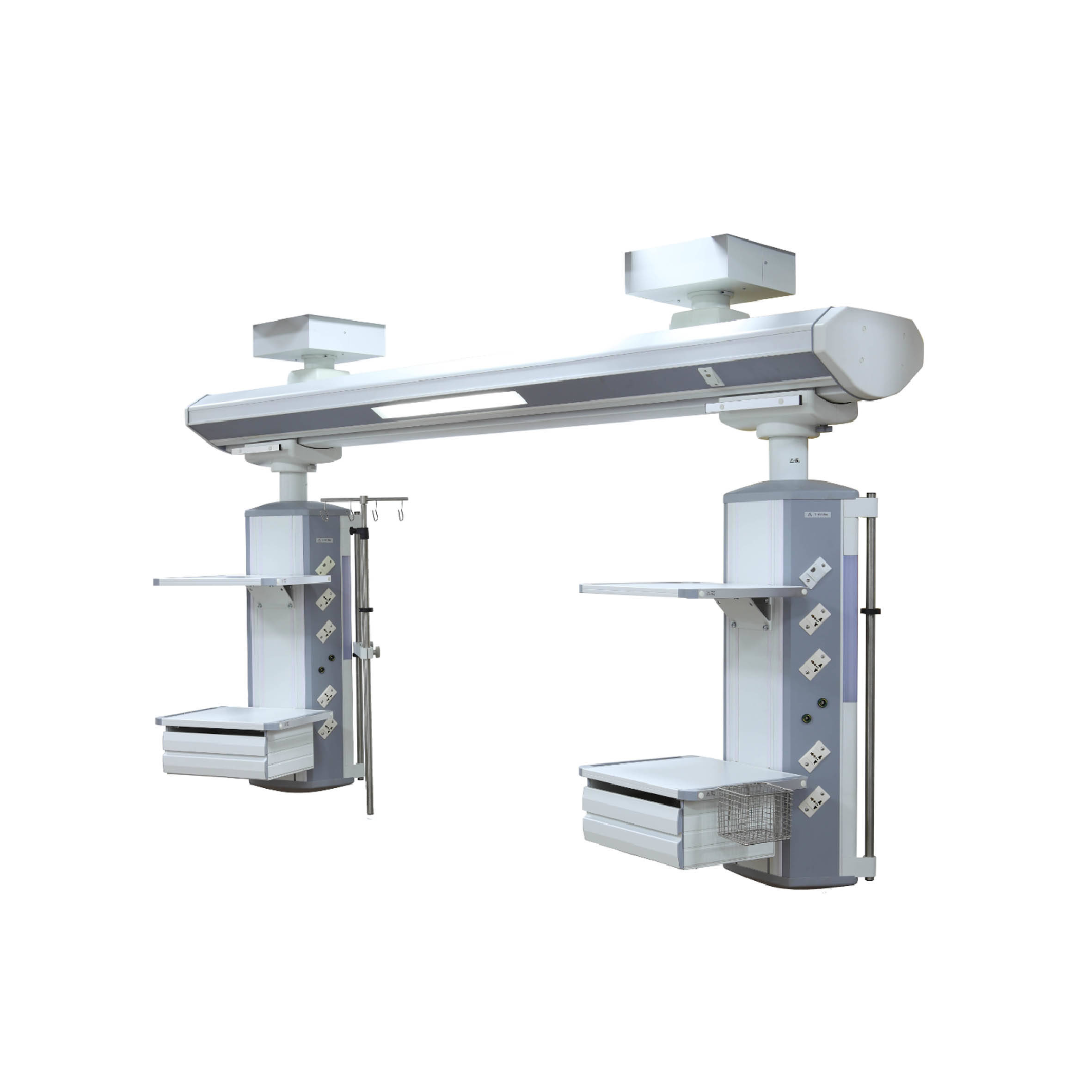

1.Double arm endoscope pendant is one of the essential surgical instruments in modern endoscopic surgery.
2.Surgical pendant is designed to reduce OR tripping hazards and improve workflow, maximizing the surgical workspace.
It reduces reliance on carts and enables the operators to streamline the workflow of the operating room.
TECHNICAL PARAMETERS
| Max. load | 310kg |
| Medical gas outlets standards | optional British, German, French, Metric, Ohmeda, DISS, Chemetron, Purit-Bennett standards |
| Column length | 1,200mm |
| Arm rotation diameter | wet area 940+800mm, dry area 1,100mm |
| Arm rotation angle | 340° |
| Braking system | Mechanical braking(optional air pneumatic or electromagnetic braking) |
STANDARD CONFIGURATION
| Gas outlet | O2*2, Air*2, Vac*2 |
| Electrical socket | 12 pcs |
| Equipotential earthing terminal port | 4 pcs |
| Network interface | 2 pcs |
| Phone interface | 2 pcs |
| Instrument shelves(height adjusted) | 6 pcs |
| Self priming drawer | 2 pcs |
| Basket | 2 pcs |
| I.V Pole(height adjustable) | 1 pcs |
OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE
