PRODUCT DESCRIPTION

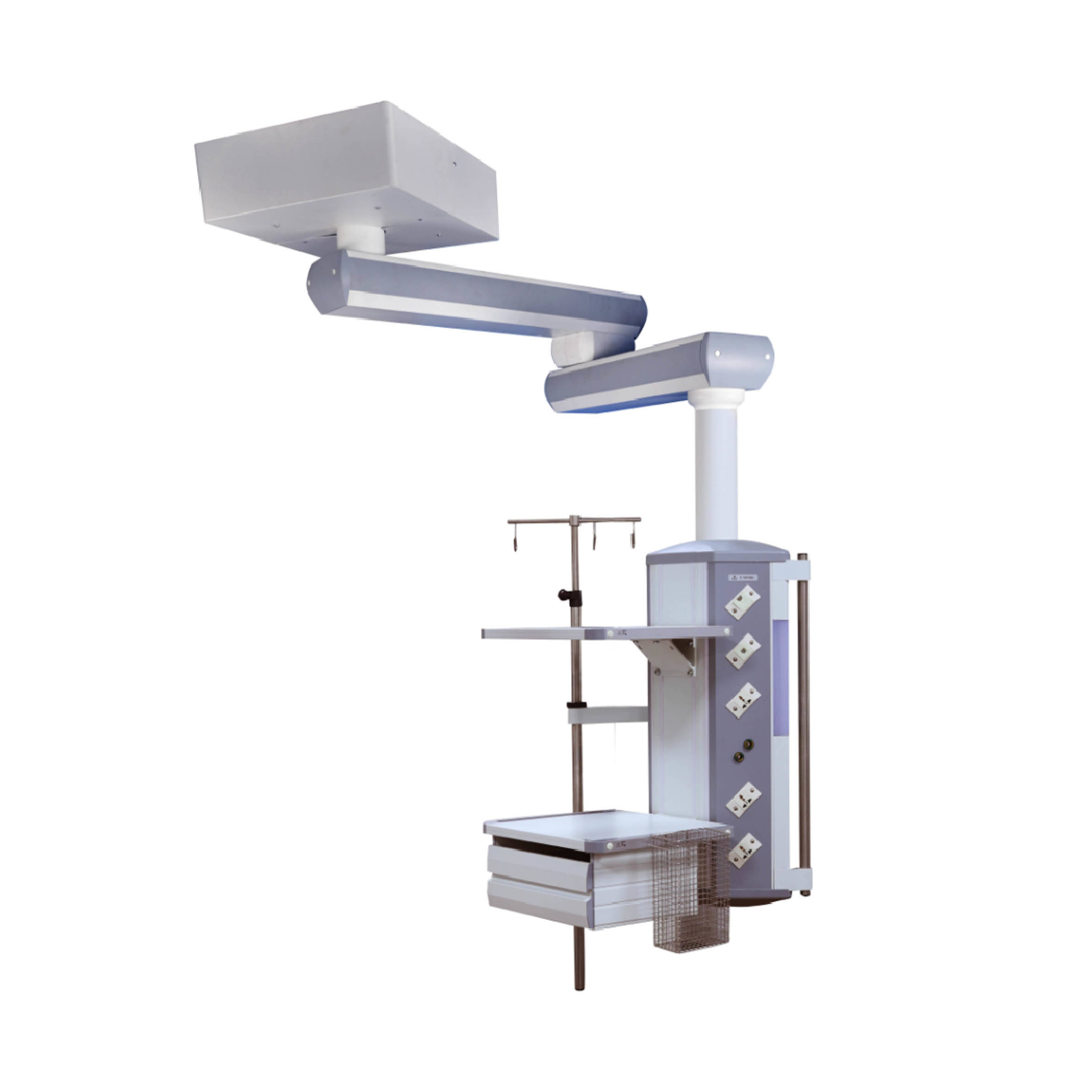

1.Pendants applied area: operation theatre, ICU
2.Adopted by 340° ceiling suspending way, rotating angle 340°.
3.The pendant is adopted by the electromagnetic brakes, and handle is easy for reach.
4.The tray height is adjustable, and gas terminals are optional(GB, DIN, US, BS), with optional power sockets(GB
Class 3 general).
5.Function column height is customized(Height: 600~1,000mm).
6.Updated options: monitor bracket, display bracket, LED surgical examination lights, IV poles, straight plug or
hanging flowmeter.
7.Pendant cantilever: double arms 825+825mm(effective extended arm: 1,200mm)—Revise according to actual
dimension.
TECHNICAL PARAMETERS
| Max. load | 270kg |
| Gas terminal | O₂/VAC/AIR/N₂O/CO₂/N₂/AGSS(optional) |
| Power socket | 220V 50Hz 10A |
| Equipotential ground | equivalent potential port*2 |
| Intercom interface | RJ45(6 types) |
| Instrument platform | instrument platform 2 layers |
STANDARD CONFIGURATION
| Gas outlet | O2*2, Air*2, Vac*1 |
| Electrical socket | 6 pcs |
| Equipotential earthing terminal port | 2 pcs |
| Network interface | 1 pcs |
| Phone interface | 1 pcs |
| Instrument shelves(height adjusted) | 2 pcs |
| Self priming drawer | 1 pcs |
| Basket | 1 pcs |
| IV Pole(height adjustable) | 1 pcs |
OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE
| Instrument bracket |
| Gas terminal |
| Basket |
| Network interface |
| Intercom |
| Power sockets |
