PRODUCT DESCRIPTION

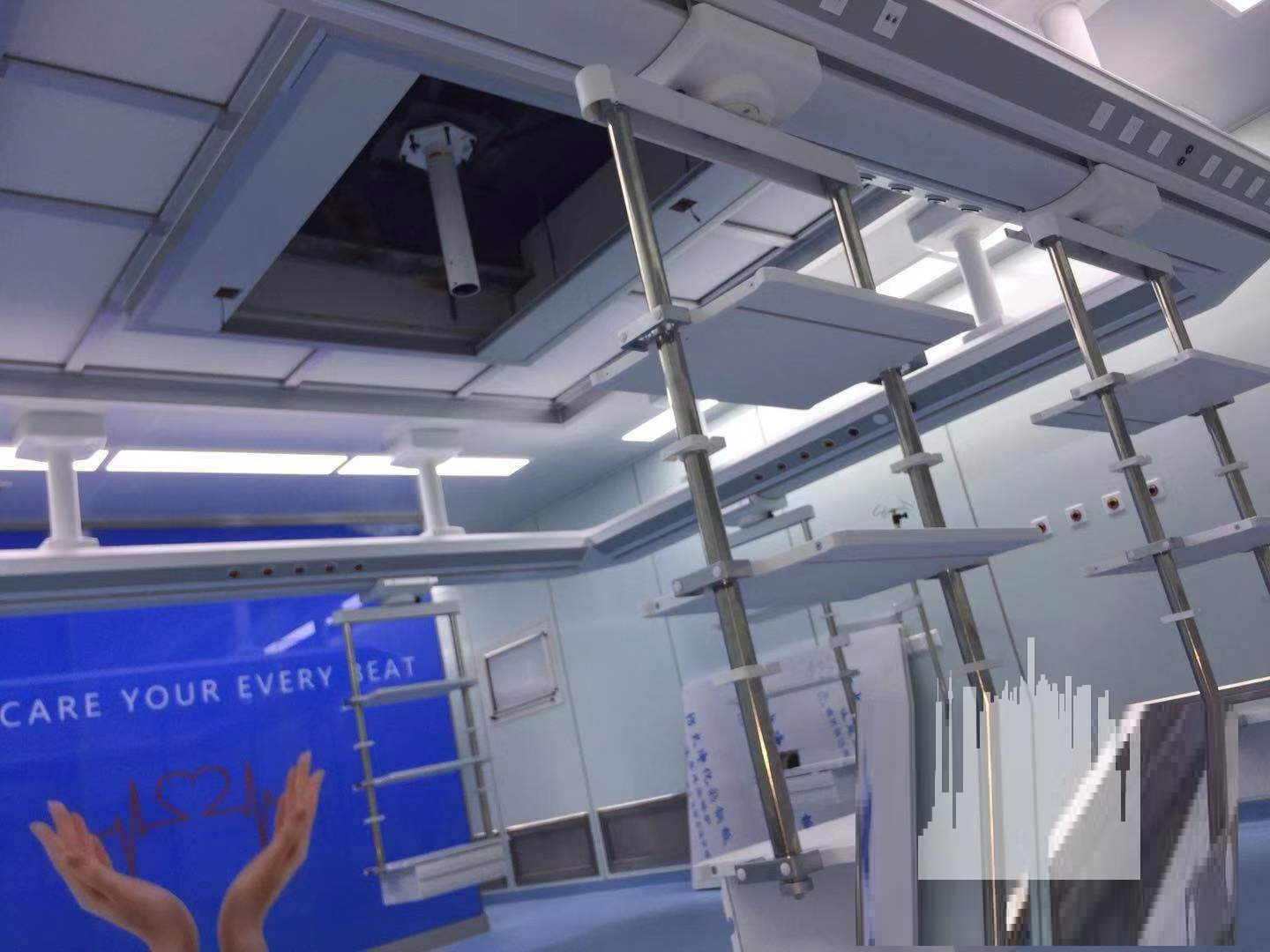

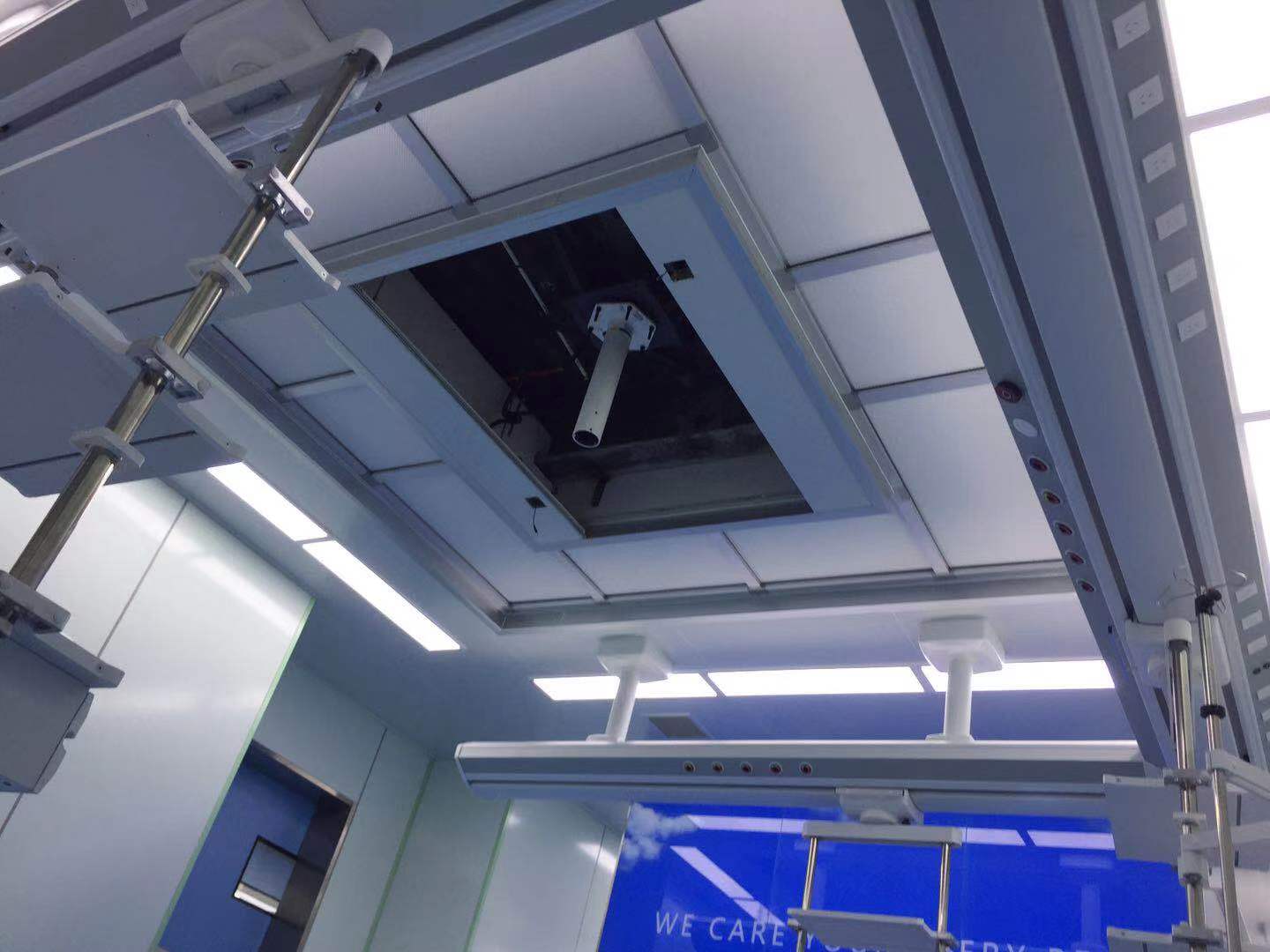

1.Double arm endoscope pendant is one of the essential surgical instruments in modern endoscopic surgery.
2.Surgical pendant is designed to reduce OR tripping hazards and improve workflow, maximizing the surgical workspace.
It reduces reliance on carts and enables the operators to streamline the workflow of the operating room.
3.Limited device to ensure no gapless connection and flexible movement without floating.
TECHNICAL PARAMETERS
| Max. load | 310kg |
| Medical gas outlets standards | optional British, German, French, Metric, Ohmeda, DISS, Chemetron, Purit-Bennett standards |
| Beam length | 2,800mm(optional different length) |
| Column movement | manual(optional electrical control) |
| Braking system | Mechanical braking(optional air pneumatic or electromagnetic braking) |
STANDARD CONFIGURATION
| Gas outlet | O2*2, Air*2, Vac*1 |
| Electrical socket | 6 pcs |
| Equipotential earthing terminal port | 2 pcs |
| Network interface | 1 pcs |
| Phone interface | 1 pcs |
| Instrument shelves(height adjusted) | 2 pcs |
| Self priming drawer | 1 pcs |
| I.V Pole(height adjustable) | 1 pcs |
| LED light | 1 pcs |
OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE
